Efficient and Safe Training in Interventional Radiology
HumanX Angiotrainer
Precision in Interventional Radiology Training

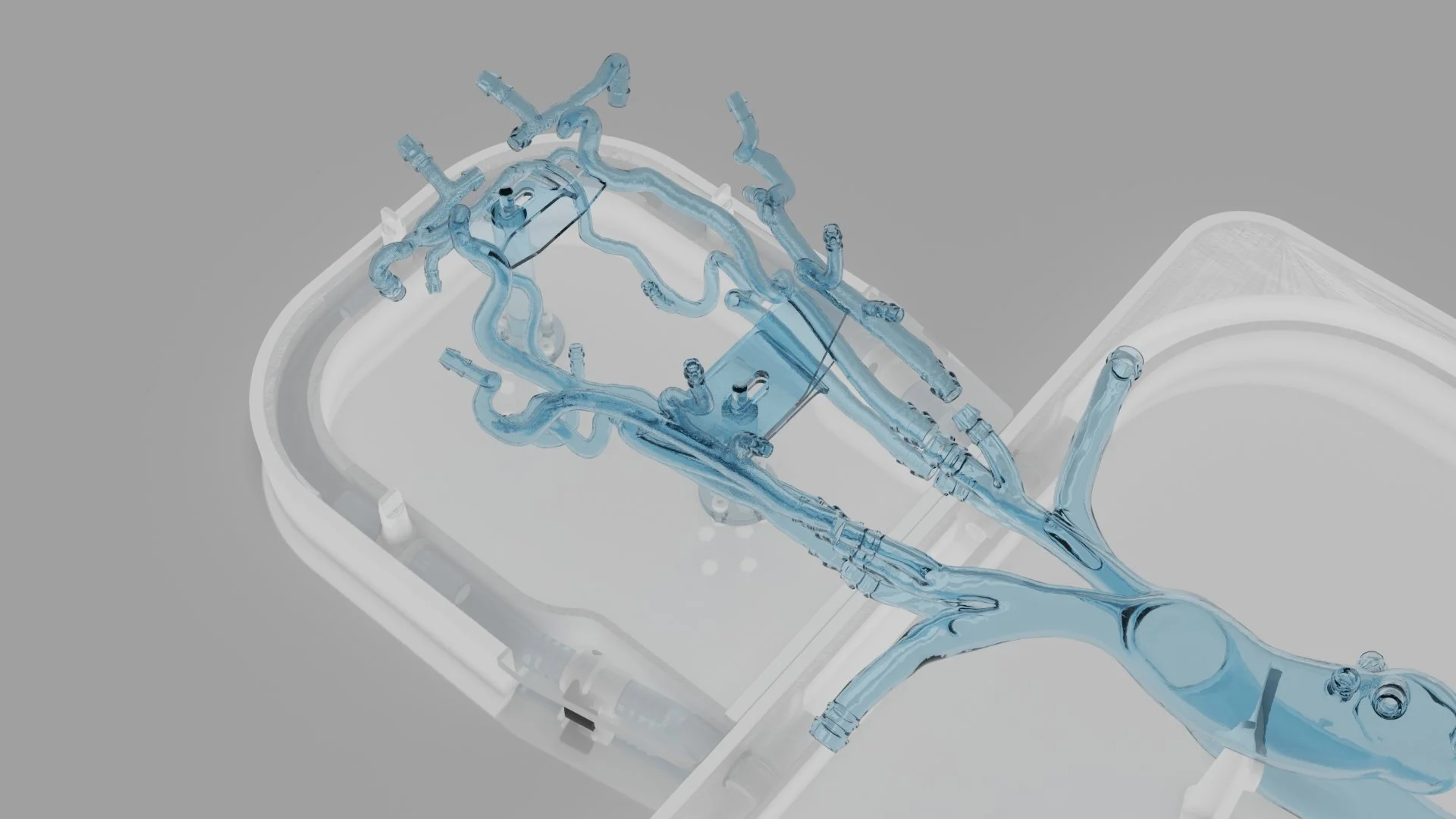

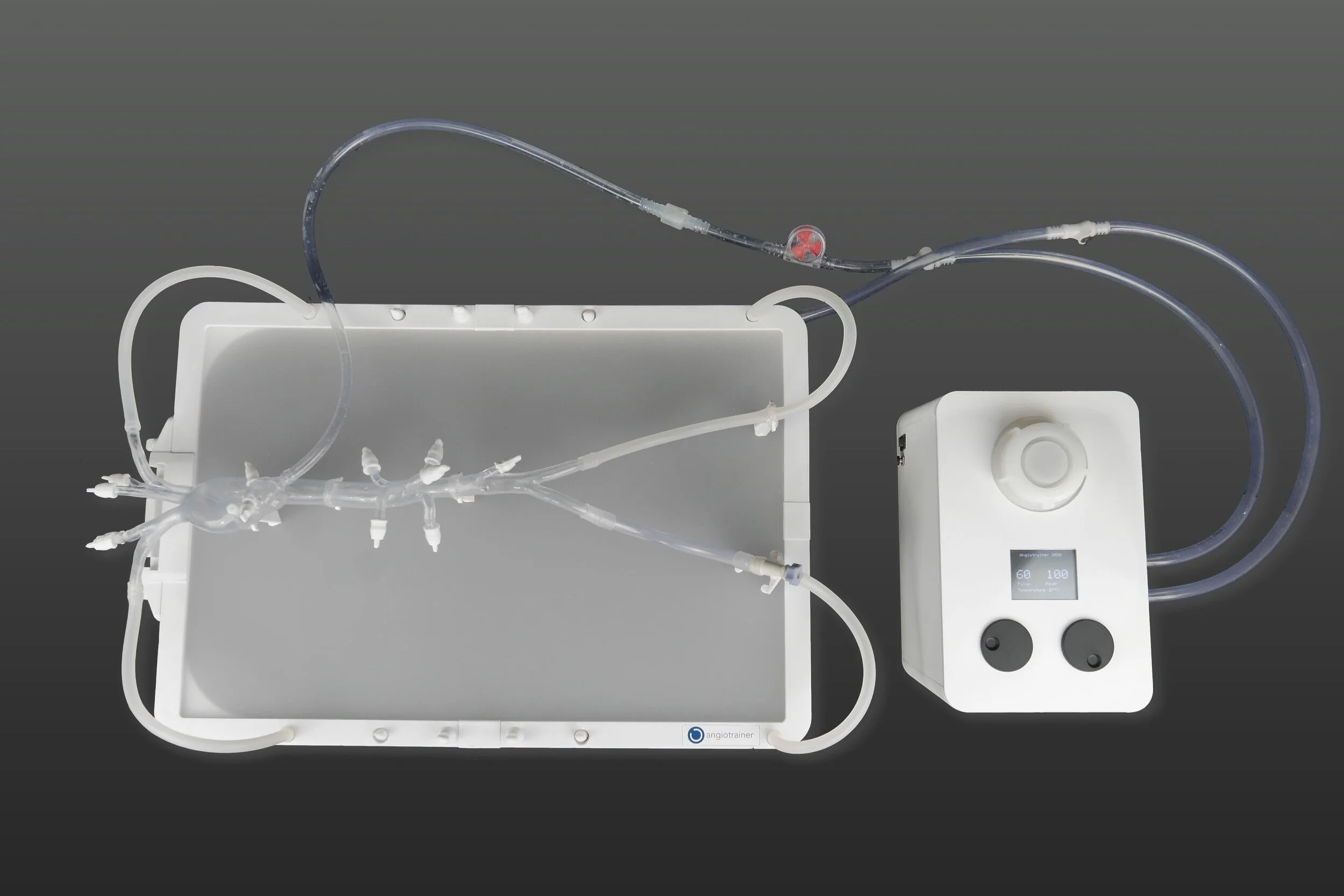

Our Angiotrainer is the best way to learn and practice the handling of catheters and guidewires in combination with an imaging system. The realistic and user-friendly system can be used in every conference room as well as in the angiography facility. The vascular model offers various exercise scenarios and can be easily combined with other vessel models (e.g. our coronary module, head module, and labyrinth model). The included pump unit allows the realistic perfusion of the vessel model, so that the use of a contrast medium for visualization of the vascular structures can also be simulated.
Our Angiotrainer pump unit provides an extremely realistic blood flow in the Angiotrainer’s vascular structures. Pulse and flow rate are variably adjustable via the integrated control unit and can be read at any time on a TFT display. All operating parameters can also be read via USB. Specifications:
Pump frequency 40-170 beats/min, continuous flow adjustable
Variable stroke volume from 0-45ml
Temperature controlled heated liquid tank (1l)
Power supply: 12V DC (external power supply 220V / 110V AC)
Intuitive operation via rotary controls
CPC coupling for connecting the Angiotrainer’s vascular model as well as other models and simulators
Dimensions: 300 x 200 x 210 mm (pump only)
